In modern industries, companies need to increase productivity, drive down operational costs, and maintain a dependable system. For procurement managers, facilities engineers, and integrators, keeping up with recent developments in ventilation technology is important. One such development is the electronically commutated fan, a game-changing innovation that is transforming industrial facilities’ air flow, temperature control, and system performance management. In conjunction with ruggedized solutions such as ip65 fans, EC fans are facilitating next-generation ventilation systems that perform optimally even under severe environmental conditions.

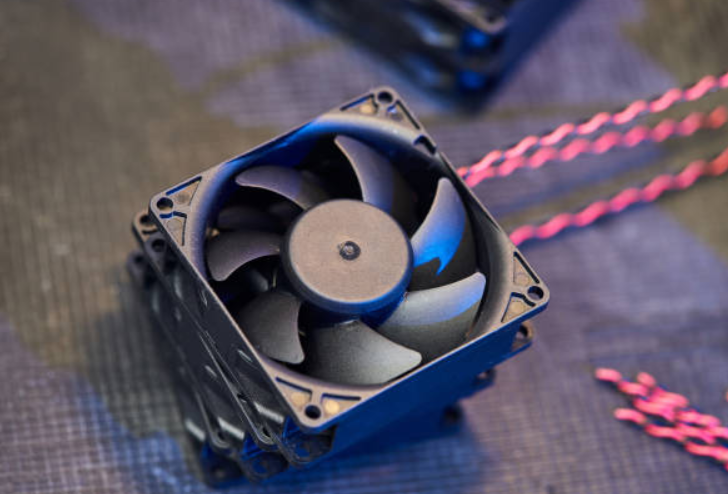

What Is an Electronically Commutated Fan?
An electronically commutated fan (EC fan) is equipped with a brushless DC motor and its own electronics which monitor speed, airflow, and power consumption of the fan, allowing for regulation to highly precise levels. Unlike traditional AC fans with no built-in control circuitry that alternate between two modes of operation: a voltage/frequency control and an external inverter, EC fans are equipped with smart controls. The benefits of this design are numerous:
- High Energy Efficiency: EC fans often consume 50% less energy than comparable AC units because the motor’s speed is dynamically adjusted to real-time airflow demands.
- Precise Ventilation Optimisation: On-board electronics allow for PWM (pulse-width modulation) or analog control, offering facilities the ability to fine-tune process ventilation rates.
- Simplified Preventive Care: DC motors with integrated electronics eliminating brush wear make for simpler diagnostics and fault reporting, reducing the complexity of preventive maintenance.
- Space Saving: The combined motors, electronics, and impeller in a single housing make EC fans streamline the installation process and reduce space requirements.
- Acoustic Emission Reduction: Precise speed control paired with optimization of blade profiles helps SC fans minimize acoustic emissions. This is crucial in occupied or sensitive areas of industry.
For any industrial ventilation application using modern EC fans, the key considerations of energy efficiency, performance optimization, and dependability can be achieved with ease.
Strategic Advantages of EC Fans in Industrial Ventilation
From data centers to manufacturing plants, industrial facilities have robust ventilation requirements to sustain optimal operating conditions. The integration of EC fans provides several strategic benefits:
- Savings in Operational Expenditure
Maintaining industrial facilities incurs significant expenditures in energy use. Targeted delivery of airflow and precise control from EC fans helps reduce consumption of kilowatt hours. In a typical 5-year lifecycle, ROI from utility savings can reach over 30%.
- Enhanced Process Control
In chemical synthesis or semiconductor manufacturing, strict control of temperature and humidity is essential. Electronically commutated (EC) fan systems provide the needed responsiveness and can interface with building management systems (BMS) or process control networks for automation based on real-time sensor data. - Improved System Uptime
Anomalies overheating, under-volting, or bearing fatigue EC fans will notify centralized monitoring systems. Remotely accessible EC fans with integrated fault monitoring help reduce unplanned system outages and increase the operational life of the system. - Scalable Solutions
Starting from 60mm, now you can find EC fans with up to 315mm impellers and will work with voltages starting from 110V up to 380V. Design engineers are granted a high degree of freedom and can now address multiple applications, from ventilation shafts to cabinet coolers. - Environmental Compliance
EU ErP Lot 11 and US DOE regulations are only some of the many regions with strict energy compliance laws. EC fans are known to help exceed compliant requirements and enable enterprises to meet corporate goals while avoiding fines.
Working with IP65 Fans: Protective Features and Functionality
Where dust particles, moisture, or chemical contaminants are prevalent, standard ventilation solutions are likely to fail. An ip65 fan can withstand wash-down procedures, ingress of dust, and water jets for moderate washes while maintaining performance. The meaning of IP65 rating is:
- Dust Tight (6): Internal components cannot be accessed and are fully sealed.
- Water Jets (5): Low-pressure water can be projected from any angle.
Key features of IP65-rated fans include:
- Sealed Bearings and Housings: Ensures the motor is protected from particulates and liquids.
- Corrosion-Resistant Materials: Stainless steel or specialized plastics detrimental to chemical attacks.
- Ingress-Protected Connectors: Waterproof cable glands or sealed terminal boxes.
- Optional Accessories: Filters, protective grills, and inline silencers designed for harsh environments.
The strong protection of an ip65 fan paired with the sophisticated design of electronically commutated fans makes them ideal for harsh industrial applications.
Merging EC Fans and IP65 Fans into Industrial Systems
When it comes to business-to-business purchasing, the combination of EC technology along with IP protection requires a careful consideration. These are guidelines for proper integration:
- Evaluate Zone Requirements
Determine areas of installation such as cabinet interiors, dusty workshops, or wash-down areas and assign appropriate fan types. Unprotected EC fans may work in clean zones, while IP65-rated EC fans perform better in harsher environments. - Utilize Controls Embedded
Connect fans’ PWM or analog inputs to PLCs or building management systems to maximize their use. Program temperature or pressure dependent speed setpoints to reduce energy consumption while maintaining quality output. - Design Maintenance Access
Even though fans with IP65 rating are protected from dust ingress, periodic inspections of seals and connectors are recommended. Cabins or ducts should be designed to provide unobstructed access to fans for quick removal and refitting. - Coordinate with Filtration
Integrate pre-filters or automatic purge systems for severe dust or condensate upstream of the fan inlet to improve filter life and maintain motor integrity. - Modular Units Standardization
Certified common fans with the same footprint, mounting holes, and electrical connectors across large scale facilities will greatly ease spare parts control and training for maintenance teams.
Looking Ahead to Considerations and Trends in Industrial Ventilation
The development process of industrial ventilation will continue advancing, as new considerations like digitalization and sustainability are taken into account. The key drivers for future deployments will be the following:
- Smart Fans
Cloud-based dashboards will enable remote fine-tuning and predictive maintenance via programmable wireless communication modules, unlocking real-time insights into fan performance. - Adaptive Control Algorithms
Energy expenses can be minimized even more if historical airflow and temperature data are analyzed and demand fluctuations are anticipated using ML algorithms. - Advanced Material Technologies
New composite materials will make it possible to increase the strength-to-weight ratio of impellers, which would allow for higher rotational speeds with little additional energy cost. - Regulatory Evolution
Because of a global focus on carbon reduction, the energy efficiency of fans and blowers will likely have stricter standards. Businesses that switch to EC (electronic commutated) motors and IP65 (ingress protection) technologies are better placed to comply with regulations.
The use of electronically commutated fans in industrial facilities, particularly when paired with IP65-rated protection, enhances energy efficiency, reliability, and process control. For B2B companies aiming to lower total cost of ownership while fostering sustainability, EC fans are proven to improve performance while ensuring continual compliance with regulations and providing long-term operational flexibility.
